Phosphate rock

1.Chemical and Physical Properties

1.1 Chemical Composition

• Primary Mineral: Fluorapatite [Ca₅(PO₄)₃F] - the most common phosphate mineral in commercial deposits
• Alternative Forms:
  • Hydroxyapatite [Ca₅(PO₄)₃(OH)]
  • Chlorapatite [Ca₅(PO₄)₃Cl]
  • Carbonate-fluorapatite (francolite) - most common in sedimentary deposits
• Chemical Formula:
  • Generally expressed as Ca₃(PO₄)₂ for simplicity, though actual composition is more complex
• P₂O₅ Content:
  • Commercial grades typically contain 28-38% P₂O₅ (phosphorus pentoxide equivalent)
• Associated Minerals:
  • Quartz, calcite, dolomite, clay minerals, organic matter, and trace elements

1.2 Physical Properties

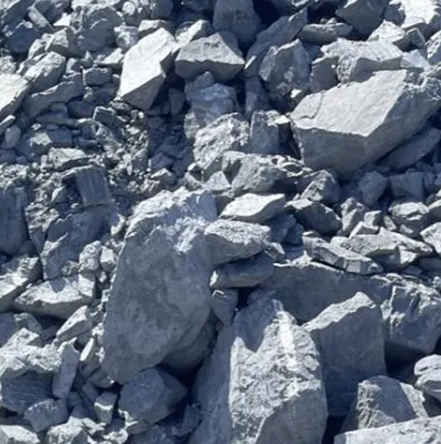

• Appearance:
  • Varies from light gray to dark brown or black, depending on organic content and impurities
• Texture:
  • Ranges from fine-grained to coarse, often containing fossils in sedimentary deposits
• Hardness: 3.5-4.0 on the Mohs scale
• Specific Gravity: 2.9-3.2 g/cm³
• Crystal System: Hexagonal (for apatite minerals)
• Porosity:
  • Highly variable, from dense crystalline to porous sedimentary varieties
• Particle Size:
  • After mining and processing, typically ranges from 0.1 mm to 6 mm

1.3 Geochemical Characteristics

• Trace Elements:
  • Often contains cadmium, uranium, rare earth elements (REEs), and fluorine
• Organic Matter:
  • Sedimentary deposits may contain 1-8% organic carbon
• Acid Solubility:
  • Key parameter for fertilizer production - measures phosphorus availability
• Weathering Resistance:
  • Relatively stable under normal atmospheric conditions

2.Production Technologies

2.1 Mining Operations

• Open-Pit Mining: Dominant method for most phosphate rock deposits
  • Large-scale surface mining operations
  • Requires overburden removal and waste rock management
  • Typical depth: 10-100 meters
  • Equipment: Draglines, electric shovels, haul trucks
• Underground Mining: Used for deeper or higher-grade deposits
  • Room-and-pillar method most common
  • Higher operating costs but lower environmental impact
  • Applied in deposits like those in Russia and parts of China

2.2 Beneficiation and Processing

• Crushing and Screening:
  • Primary crushing reduces rock to 150-200 mm
  • Secondary crushing to 25-50 mm
  • Screening separates different size fractions
• Scrubbing and Washing:
  • Removes clay and organic matter
  • Improves P₂O₅ grade through physical separation
  • Uses water-based washing systems
• Flotation:
  • Most important upgrading process
  • Separates phosphate minerals from gangue minerals
  • Uses collectors (fatty acids), modifiers, and frothers
  • Can increase P₂O₅ content from 15-20% to 30-35%
• Drying and Sizing:
  • Reduces moisture content to 1-2%
  • Final sizing for different end-use applications
  • Quality control and blending operations

3.Applications

3.1 Fertilizer Production(Primary use-80-85% of consumption)

• Phosphoric Acid Production:
  • Wet process: Phosphate rock + sulfuric acid → phosphoric acid + gypsum
  • Thermal process: Electric furnace reduction to white phosphorus, then oxidation
  • Produces the foundation chemical for all phosphate fertilizers
• Direct Application Fertilizers:
  • Diammonium Phosphate (DAP): Most widely used phosphate fertilizer globally
  • Monoammonium Phosphate (MAP): High-analysis fertilizer for various crops
  • Triple Superphosphate (TSP): Concentrated phosphate fertilizer
  • Single Superphosphate (SSP): Traditional phosphate fertilizer with sulfur
• Compound Fertilizers: NPK fertilizers containing phosphorus as a key nutrient

3.2 Animal Feed Supplements(8-10% of consumption)

• Dicalcium Phosphate (DCP):
  • Primary phosphorus source in animal nutrition
  • Essential for bone development and metabolic functions
  • Used in poultry, swine, and cattle feed
• Monocalcium Phosphate (MCP):
  • Higher bioavailability than DCP
  • Premium feed additive for high-performance animals
• Defluorinated Phosphate Rock:
  • Direct use after fluorine removal
  • Cost-effective option for ruminant nutrition

4.Market Analysis

4.1 Global Production and Reserves

• Global Production: Approximately 220-240 million metric tons annually
• Reserve Distribution:
  • Morocco and Western Sahara: ~70% of global reserves (50+ billion tons)
  • China: ~5% of reserves but significant production
  • United States: ~2% of reserves (Florida, North Carolina, Idaho)
  • Other producers: Russia, Jordan, Saudi Arabia, Peru, Egypt
• Resource Concentration: Highly concentrated in North Africa and Middle East

4.2 Major Market Players

• Leading Companies:
  • OCP Group (Morocco): World's largest producer and exporter
  • Mosaic Company (USA): Major North American producer
  • PhosAgro (Russia): Leading European and global supplier
  • Ma'aden (Saudi Arabia): Growing Middle Eastern producer
  • Nutrien (Canada): Integrated fertilizer producer
• Market Structure:
  • Oligopolistic with few major players controlling global supply

5.Upstream and Downstream Linkages

5.1 Upstream Linkages(Inputs and Dependencies)

• Geological Resources:
  • Sedimentary phosphate deposits (marine origin)
  • Igneous apatite deposits (much less common commercially)
  • Guano deposits (limited and largely depleted)
• Mining Equipment and Services:
  • Heavy mining machinery (draglines, shovels, trucks)
  • Drilling and blasting services
  • Mine planning and geological services
• Processing Equipment:
  • Crushing and grinding equipment manufacturers
  • Flotation equipment and reagent suppliers
  • Drying and materials handling systems
• Energy and Utilities:
  • Electricity for mining and processing operations
  • Water for beneficiation processes
  • Fuel for mobile equipment and transportation
• Chemical Inputs:
  • Flotation reagents (collectors, frothers, modifiers)
  • Process chemicals for beneficiation
  • Maintenance chemicals and lubricants

5.2 Downstream Linkages(Products and Consumers)

• Primary Processing Industry:
  • Phosphoric Acid Producers: Convert phosphate rock to phosphoric acid
  • Thermal Phosphorus Producers: Electric furnace operations for white phosphorus
  • Direct Application Producers: Manufacture single superphosphate and ground phosphate rock
• Secondary Processing Industry:
  • Fertilizer Manufacturers: Produce DAP, MAP, NPK fertilizers
  • Feed Phosphate Producers: Manufacture DCP, MCP for animal nutrition
  • Industrial Chemical Producers: Specialty phosphorus compounds
• End-Use Sectors:
  • Agriculture: Farmers and agricultural cooperatives
  • Animal Feed Industry: Feed mills and livestock producers
  • Food and Beverage: Soft drink manufacturers, food processors
  • Industrial Users: Detergent manufacturers, water treatment companies
• Support Industries:
  • Transportation and Logistics: Bulk shipping, rail transport, truck transport
  • Storage and Distribution: Port facilities, inland terminals, warehouses
  • Equipment and Services: Maintenance, engineering, environmental services
• By-product Streams:
  • Phosphogypsum: Construction industry, cement production
  • Rare Earth Elements: Technology and renewable energy sectors
  • Fluorine Compounds: Chemical industry applications
