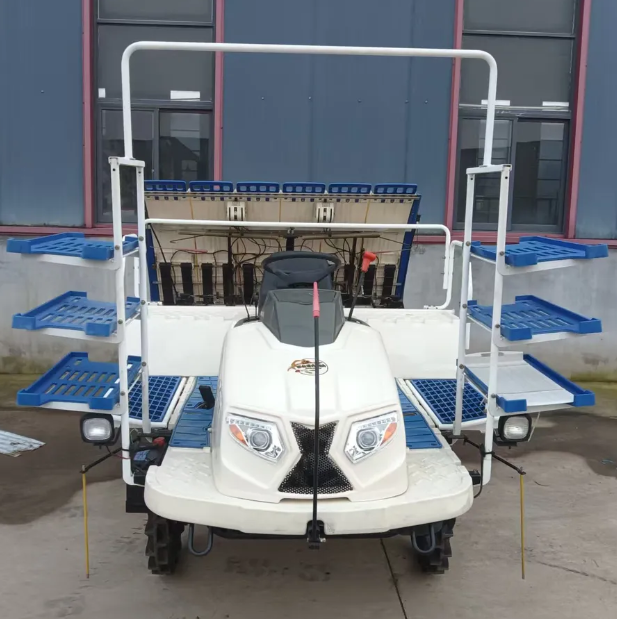

ZGC-6 High-speed Ride-on Transplanter (Diesel Version)

I. Product Definition

The ZGC-6 high-speed ride-on rice transplanter is a high-efficiency rice transplanting machine powered by a diesel engine and operated in a ride-on mode. Designed for 6-row operation with a row spacing of 300 mm, it is suitable for medium-scale rice planting areas. Highlighted by its fuel economy, power stability and long-hour operation capability, it is an ideal choice for professional farmers and agricultural machinery service organizations.

II. Core Parameters

III. Power and Transmission System

Diesel Engine: Equipped with a diesel engine with a rated power of 18.4 kW and a rated speed of 2600 r/min. Diesel engines have the advantages of high torque, excellent fuel economy, high reliability and long service life, making them particularly suitable for large-scale planting scenarios requiring long hours of continuous operation.

Transmission Mode: Adopting an advanced combination of hydraulic stepless transmission and 2-speed mechanical transmission. Hydraulic stepless transmission ensures smooth adjustment of operation speed, and combined with mechanical transmission gears, the machine can flexibly adapt to different field conditions and operational requirements.

IV. Transplanting Operation System

Rows and Row Spacing: 6-row operation with a row spacing of 300 mm, suitable for the conventional rice planting density requirements.Plant Spacing Adjustment: 6 gears of plant spacing are available (110, 130, 150, 160, 180, 210 mm). Adjustable via a handle, it can flexibly adapt to the requirements of different rice varieties and planting densities.Transplanting Depth: The adjustment range is 10-50 mm, meeting the needs of different soil conditions and seedling types.

Transplanting Frequency: The single-row transplanting frequency is 340-655 hills per minute, featuring high operation efficiency.Transplanting Arm Type: Adopting a rotary transplanting arm with accurate and reliable movement.Plant Spacing and Seedling Picking Depth: The plant spacing can be selected as 20, 18, 16 mm, and the seedling picking depth is adjustable from 12 to 19 mm, ensuring precise control of the seedling picking amount.

V. Travel and Balance System

Travel Wheels

Front Wheels: Tubeless rubber wheels with a diameter of 650 mm.

Rear Wheels: Tubeless rubber claw high-ear wheels with a diameter of 950 mm. The special claw design of the rear wheels enhances grip and passability in muddy paddy fields.

Balance Mechanism

Equipped with an electronic hydraulic balance system that automatically senses and adjusts the body posture, ensuring consistent transplanting depth and stable operation in complex terrains.

VI. Applicability and Advantages

Economical and Efficient: The diesel engine delivers excellent fuel economy with fuel consumption per unit operation ≤16 kg/ha, bringing obvious advantages in long-term use costs.Powerful Performance: The low-speed and high-torque characteristics of the diesel engine ensure stable operation even under complex working conditions such as muddy paddy fields.

Durable and Reliable: The robust structure of the diesel engine is suitable for large-scale planting scenarios requiring long hours of continuous operation, reducing downtime.Precise and Reliable: Multi-gear plant spacing adjustment, transplanting depth adjustment and electronic balance system ensure the uniformity and quality of transplanting.Comfortable Operation: The ride-on design, hydraulic stepless transmission and electronic balance system greatly reduce the operator's labor intensity.
