Sulfur

1.Chemical and Physical Properties

1.1 Chemical Identity

• Element Name: Sulfur
• Chemical Symbol: S
• Atomic Number: 16
• Atomic Weight: 32.065 u
• CAS Number: 7704-34-9
• Electron Configuration: [Ne] 3s² 3p⁴
• Oxidation States: -2, +2, +4, +6 (most common: -2 in sulfides, +6 in sulfates)

1.2 Physical Properties

• Appearance:

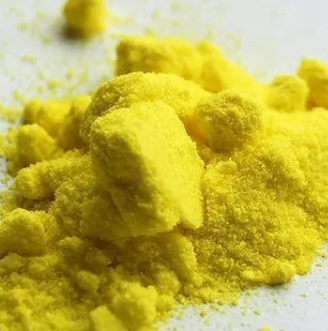

  • Bright yellow crystalline solid at room temperature
• Allotropes: Multiple forms, most common are:
  • Orthorhombic sulfur (α-sulfur): Stable below 95.3°C
  • Monoclinic sulfur (β-sulfur): Stable between 95.3-119°C
  • Plastic sulfur: Amorphous form obtained by rapid cooling of molten sulfur
• Density: 2.067 g/cm³ (orthorhombic), 1.96 g/cm³ (monoclinic)
• Melting Point: 115.21°C (239.38°F)
• Boiling Point: 444.72°C (832.50°F)
• Solubility:
  • Water: Virtually insoluble (5.5 × 10⁻⁶ g/100 mL at 25°C)
  • Carbon disulfide: Highly soluble
  • Organic solvents: Variable solubility

1.3 Chemical Properties

• Reactivity:
  • Moderately reactive, especially when heated
• Combustion: Burns in air with blue flame, producing SO₂
  • S + O₂ → SO₂ (ΔH = -297 kJ/mol)
• Chemical Bonds:
  • Forms various molecular structures (S₈ rings most stable)
• Oxidation:
  • Can be oxidized to sulfur dioxide, sulfur trioxide, or sulfuric acid
• Reduction:
  • Can be reduced to hydrogen sulfide or metal sulfides
• Vulcanization:
  • Key property for rubber industry applications

1.4 Commercial Grades and Specifications

• Bright Sulfur: 99.5-99.9% purity, yellow crystalline form
• Crude Sulfur: 99.0-99.5% purity, may contain minor impurities
• Refined Sulfur: >99.9% purity for specialized applications
• Granular Sulfur: Prilled or granulated forms for easy handling
• Liquid Sulfur: Molten form for direct industrial use
• Sublimed Sulfur: High-purity pharmaceutical grade

2.Production Technologies

2.1 Recovered Sulfur from Oil and Gas (80-85% of global supply)

2.1.1 Claus Process (Natural Gas Processing)

• Feedstock: Hydrogen sulfide (H₂S) from natural gas sweetening
• Process Steps:
  • Thermal Stage:
    1. 2H₂S + 3O₂ → 2SO₂ + 2H₂O (partial combustion at 1000-1200°C)
    2. 2H₂S + SO₂ → 3S + 2H₂O (Claus reaction)
  • Catalytic Stages:
    1. Additional Claus reaction over alumina or titania catalysts at 200-350°C
    2. Multiple stages to achieve >97% sulfur recovery
  • Tail Gas Treatment:
    1. SCOT (Shell Claus Off-gas Treatment) process
    2. BSR/Selectox processes for environmental compliance
• Efficiency: Modern plants achieve >99.5% sulfur recovery
• Environmental Benefit: Prevents H₂S emissions and acid rain

2.1.2 Oil Refinery Sulfur Recovery

• Sources:
  • Hydrodesulfurization (HDS) units
  • Fluid catalytic cracking (FCC) units
  • Coker units processing heavy crude oils
• Process: Similar Claus process technology adapted for refinery conditions
• Integration: Often combined with refinery hydrogen production

2.1.3 Metallurgical Sulfur Recovery

• Sources: Copper, zinc, lead, nickel smelting operations
• Methods:
  • Acid Plant Route: SO₂ → H₂SO₄ → S (reduction process)
  • Direct Recovery: SO₂ → S using specialized catalytic processes
  • Double Contact Process: Integration with sulfuric acid production

2.2 Mined Sulfur (10-15% of global supply)

2.2.1 Frasch Process (Historical Method)

• Application: Salt dome sulfur deposits (Texas, Louisiana)
• Process:
  • Superheated water (160°C) melts underground sulfur
  • Compressed air lifts molten sulfur to surface
  • Sulfur solidifies in large storage areas
• Status: Largely discontinued due to environmental concerns and competition from recovered sulfur

2.2.2 Conventional Mining

• Deposits: Volcanic sulfur deposits, sedimentary formations
• Methods: Open-pit and underground mining
• Processing: Crushing, screening, purification
• Locations: Poland, Russia, China, Mexico, Chile

2.2.3 In-Situ Recovery

• Method: Underground gasification and recovery
• Application: Deep deposits unsuitable for conventional mining
• Status: Limited commercial application

2.3 Quality Control and Processing

• Purification Methods:
  • Sublimation for pharmaceutical grades
  • Recrystallization from solvents
  • Distillation for removing organic impurities
• Physical Processing:
  • Prilling: Formation of uniform spherical particles
  • Granulation: Controlled particle size distribution
  • Crushing and Screening: Size reduction and classification
• Quality Parameters:
  • Purity, particle size, moisture content, ash conten

3.Applications

3.1 Sulfuric Acid Production(Primary Use - 85-90%)

• Process: Contact process for H₂SO₄ manufacturing
• Global Consumption: ~250-270 million tons of sulfur annually for acid production
• End Uses of Sulfuric Acid:
  • Fertilizer production (phosphate fertilizers)
  • Metal processing and mining
  • Petroleum refining
  • Chemical manufacturing
• Regional Variations:
  • Higher percentage in developing countries with large fertilizer industries

3.2 Agricultural Applications (Direct Use -3-5%)

• Soil Amendment:
  • pH reduction in alkaline soils
  • Nutrient availability improvement
  • Sodium displacement in sodic soils
• Fungicide Applications:
  • Crop protection against powdery mildew, rust, scab
  • Organic farming approved pesticide
  • Fruit and vegetable disease control
• Animal Feed Additive:
  • Ruminant nutrition supplement
  • Methane emission reduction in cattle
• Application Methods: Dusting, spraying, soil incorporation

3.3 Industrial Chemical Applications (3-4%)

• Rubber Industry:
  • Vulcanization: Cross-linking of rubber polymers
  • Tire manufacturing (most important application)
  • Industrial rubber products
  • Accelerator and activator systems
• Paper and Pulp Industry:
  • Kraft pulping process (cooking liquor preparation)
  • Bleaching chemical production
  • pH control and processing aid
• Textile Industry:
  • Fabric bleaching and processing
  • Dye fixation processes
  • Synthetic fiber production

3.4 Speciality Chemical Manufacturing(2-3%)

• Inorganic Chemicals:
  • Sodium sulfite and bisulfite production
  • Sulfur dioxide for preservatives
  • Metal sulfides and sulfates
• Organic Chemicals:
  • Carbon disulfide (CS₂) production
  • Thiochemicals and organosulfur compounds
  • Pharmaceutical intermediates
• Specialty Applications:
  • Match head production
  • Fireworks and pyrotechnics
  • Black powder and explosives

3.5 Emerging and Specialized Application (1-2%)

• Lithium-Sulfur Batteries:
  • Next-generation battery technology
  • High energy density applications
  • Electric vehicle and energy storage research
• Construction Materials:
  • Sulfur concrete and asphalt modification
  • Building materials in sulfur-rich regions
  • Road construction applications
• Environmental Applications:
  • Heavy metal remediation
  • Waste treatment processes
  • Soil contamination cleanup

4.Market Analysis

4.1 Supply Structure and Market Dynamics

• Recovered Sulfur Dominance: 80-85% from oil/gas operations
• By-Product Nature: Sulfur production tied to hydrocarbon processing
• Supply Growth Drivers:
  • Increasing sour crude oil processing
  • Natural gas production from high-sulfur reserves
  • Environmental regulations requiring sulfur removal
  • Expansion of LNG and gas processing facilities
• Supply Constraints:
  • Limited by upstream oil/gas processing capacity
  • Transportation and storage infrastructure bottlenecks
  • Regional concentration of production sources

4.2 Market Structure and Key Players

• Integrated Oil and Gas Companies:
  • Saudi Aramco: Major sulfur producer from gas processing
  • Gazprom (Russia): Significant natural gas sulfur recovery
  • ADNOC (UAE): Integrated oil and sulfur operations
  • Shell, ExxonMobil, BP: Global integrated producers
• Independent Sulfur Producers:
  • Chemtrade Logistics (Canada): North American leader
  • Grupa Azoty (Poland): European regional producer
  • Marathon Petroleum (USA): Refinery-based production
• Trading and Distribution:
  • Transammonia: Global sulfur trading
  • Helm AG: International chemical trading
  • Regional traders: Local and regional distribution networks

5.Upstream and Downstream Linkages

5.1 Upstream Linakges (Sources and Dependencies)

• Oil and Gas Industry (Primary Source):
  • Crude Oil Processing:
    • Heavy crude oils with high sulfur content
    • Refineries with hydrodesulfurization units
    • Integration with refinery hydrogen production
    • Coking and thermal cracking operations
  • Natural Gas Processing:
    • Sour gas fields with high H₂S content
    • Gas sweetening plants and LNG facilities
    • Associated gas from oil production
    • Biogas processing (emerging source)
  • Key Supply Regions:
    • Middle East: High-sulfur crude and sour gas reserves
    • North America: Oil sands, shale gas, conventional production
    • Russia/CIS: Natural gas processing and heavy oil refining
    • China: Domestic refinery operations and gas processing
• Mining and Metallurgical Sources:
  • Base Metal Processing:
    • Copper smelting operations
    • Zinc and lead processing facilities
    • Nickel refining operations
    • Integrated mining-to-metal production
  • Coal Processing:
    • Coal gasification plants
    • Coke oven operations
    • Coal-fired power plant desulfurization
• Supporting Infrastructure and Services:
  • Processing Equipment:
    • Claus plant technology and catalysts
    • Sulfur recovery and purification equipment
    • Storage and handling systems (heated storage)
    • Transportation infrastructure (railcars, ships, trucks)
  • Technical Services:
    • Process technology licensing (Shell, Worley, Jacobs)
    • Engineering and construction services
    • Catalyst supply and regeneration
    • Maintenance and optimization services

5.2 Downstream Linakges (markets and applications)

• Chemical Industry (Primary Market - 85-90%):
  • Sulfuric Acid Producers:
    • Integrated fertilizer companies (Mosaic, OCP, PhosAgro)
    • Merchant acid producers
    • Captive acid production for internal use
    • Copper and metal processing companies
  • Direct Chemical Applications:
    • Specialty chemical manufacturers
    • Pharmaceutical intermediate producers
    • Inorganic chemical companies
    • Carbon disulfide and thiochemical producers
• Agriculture and Fertilizer Sector:
  • Direct Agricultural Use:
    • Agricultural cooperatives and dealers
    • Specialty crop producers (fruits, vegetables)
    • Organic farming operations
    • Soil amendment and crop protection markets
  • Fertilizer Value Chain:
    • Phosphate fertilizer manufacturers
    • NPK fertilizer producers
    • Agricultural input suppliers
    • Global food production system
• Industrial Manufacturing Sectors:
  • Rubber and Tire Industry:
    • Tire manufacturers (Bridgestone, Michelin, Goodyear)
    • Industrial rubber products
    • Automotive supply chain
    • Specialty rubber applications
  • Paper and Pulp Industry:
    • Pulp mills and paper manufacturers
    • Bleaching chemical suppliers
    • Forest products companies
    • Packaging and tissue producers
• Distribution and Logistics Network:
  • Transportation Companies:
    • Bulk shipping and logistics providers
    • Rail transportation services
    • Specialized sulfur handling equipment
    • Storage and terminal facilities
  • Trading and Distribution:
    • International commodity traders
    • Regional chemical distributors
    • Agricultural input dealers
    • Industrial supply companies
• Value Chain Integration Patterns:
  • Vertical Integration:
    • Oil companies → Sulfur → Sulfuric acid → Fertilizers
    • Mining companies → Metallurgy → Sulfur recovery → Chemicals
    • Integrated chemical companies with captive sulfur supply
  • Strategic Partnerships:
    • Long-term supply agreements between producers and consumers
    • Joint ventures for sulfur recovery and processing
    • Technology licensing and technical service agreements
    • Transportation and logistics partnerships
• Market Development and Innovation:
  • Technology Advancement:
    • Improved sulfur recovery efficiency
    • New applications development (batteries, construction)
    • Environmental compliance technologies
    • Process optimization and digitalization
  • Sustainability Initiatives:
    • Circular economy approaches to sulfur utilization
    • Environmental compliance and emission reduction
    • Sustainable agriculture applications
    • Green chemistry and bio-based alternatives
• Regional Market Characteristics:
  • Supply-Surplus Regions: Middle East, North America, Russia
    • Focus on export markets and value-added processing
    • Investment in transportation and storage infrastructure
    • Development of downstream chemical industries
  • Demand-Intensive Regions: Asia-Pacific, Latin America, Africa
    • Import dependency and supply security concerns
    • Local sulfuric acid and fertilizer production
    • Agricultural development and food security priorities
